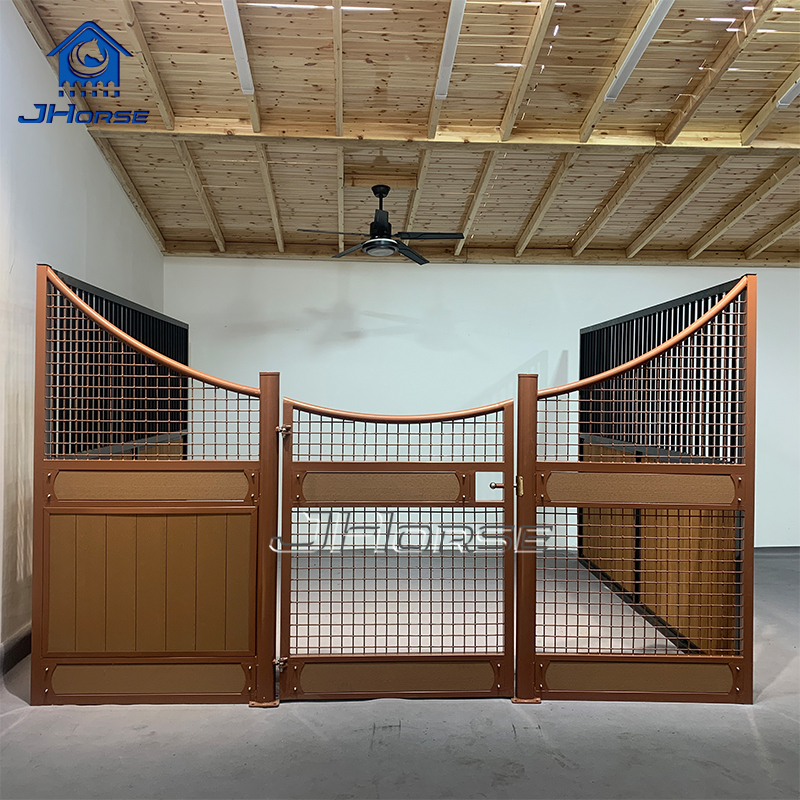

ヨーロッパの馬の停止
>
|
|
| 起源の場所 | 中国、ヘベイ |
| ブランド名 | JH Horse Stable |
| 証明 | ISO9001 |
| モデル番号 | 馬の馬小屋 |
JH Steel Grating is produced by accurately welding flat steel and cross or round bars at set intervals. Our steel grating offerings are characterized by their robust strength, light weight, strong load-bearing performance, and simple installation. The hot-dip galvanized coating delivers outstanding corrosion resistance.
Material: High quality low carbon steel
Types: Serrated and plain
Finishes: Electro galvanized, hot dipped galvanized (various surface treatment options available)
| Countries | National Standards for Grating | Materials | Galvanizing Standards |
|---|---|---|---|
| China | YB/T 4001.1-2007 | GB 700-88 | GB/T13912-2002 |
| America | ANSI/NAAMM(MBG531-00) | ASTM(A36) | ASTM(A123) |
| Britain | BS4592-1995 | BS4360(43A) | BS729 |
| Australia | AS1657-1992 | AS3679 | AS1650 |
| Item | Description |
|---|---|
| Bearing Bar | 30x3, 30x5, 30x100mm |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
| Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan:JIS |
Products are typically arranged in a stacked formation, with two square wooden pieces placed on the top and bottom surfaces. Four to six M10 long bolts pass through the gratings and are fastened together, allowing convenient handling by both forklifts and cranes.
